Product Overview

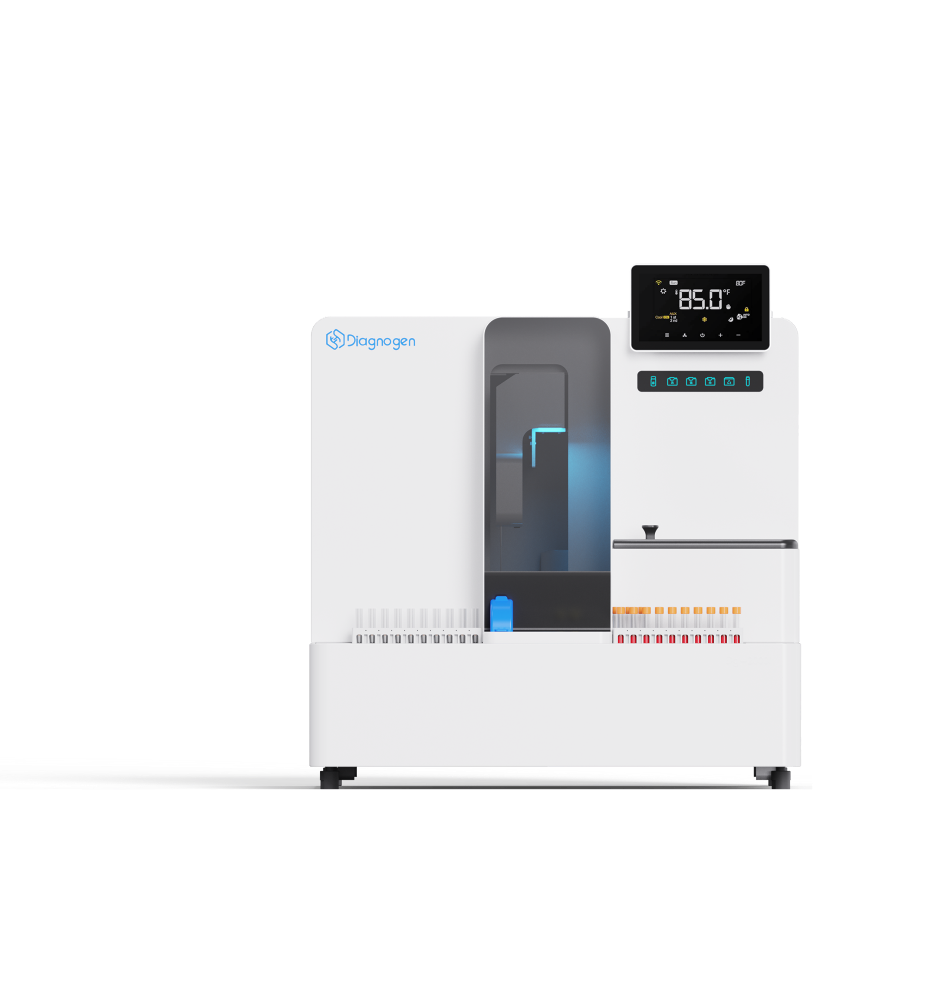

Intelligent Consumables: Engineered for Efficiency and Unwavering Reliability We believe that a world-class analyzer deserves equally advanced consumables. Our integrated system of reagent kits, reaction vessels, and substrates is co-designed with the instrument to eliminate variables, enhance stability, and maximize efficiency.\ In modern laboratories, space is a valuable asset. Understanding this challenge, we have engineered our analyzer with a compact benchtop design to deliver maximum performance in the minimum possible space. With a footprint of only 840mm x 750mm, our analyzer frees up valuable bench space in your laboratory. This space can be utilized for other equipment, workflow optimization, or simply creating a more organized and uncluttered work environment. The optimized design allows you to easily integrate the analyzer into your current lab layout or place multiple units side-by-side to increase capacity, without the need for costly renovations or structural changes.

features

Measurement and Reaction System
Detection Mode: Acridinium Ester (A.E.) technology
Signal Detector: High-sensitivity Photomultiplier Tube (PMT)
PMT Calibration: factory-calibrated with routine internal system checks
Temperature: Continuous refrigeration at 2-8°C
Mixing Unit: Continuous mixing of magnetic beads via a gear-drivenrotation mechanism
R.V Loading: automated cup handling mechanism

Reagent Assembly
Reagent Disk: 25 onboard positions
Reagent Pack: Multi-chamber reagent kit
Reagent Scanning: RFID identification
Reagent Probe: Teflon coated tube to prevent carry over
Reagent Volume: 50T to 200T packing according to different demands

Sample Assembly
Sample Feeder: Continuous loading and unloading system
Sample positions: 50 sample positions
Sample Volume: 5~150 ul
Sample Dilution: Onboard dilution 1- 100 times

General Specifications
Size (W*D*H, mm): 840mm x 750mm x 700mm
Weight: 200 Kg
Throughput: Up to 200 tests/hour (one-step assays)
100-200 tests/hour
Power supply: AC 100~240 V, 50/60 Hz
RV loader capacity: 1500 PCS
Diagnogen ensures the highest standards of quality and performance, catering to the needs of diagnostic and research laboratories globally. For additional information or to place an order, please contact us at sales@diagnogen.com
